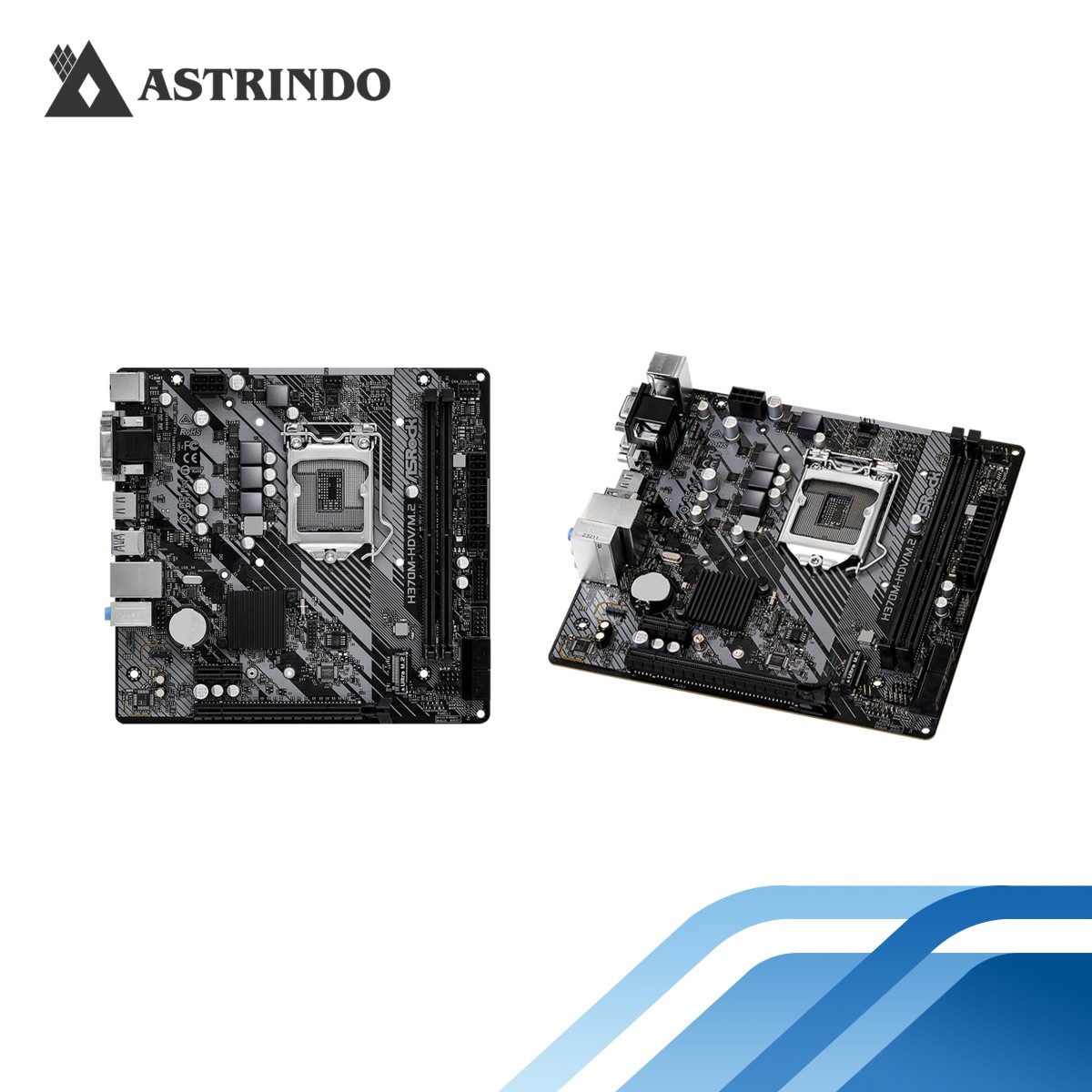

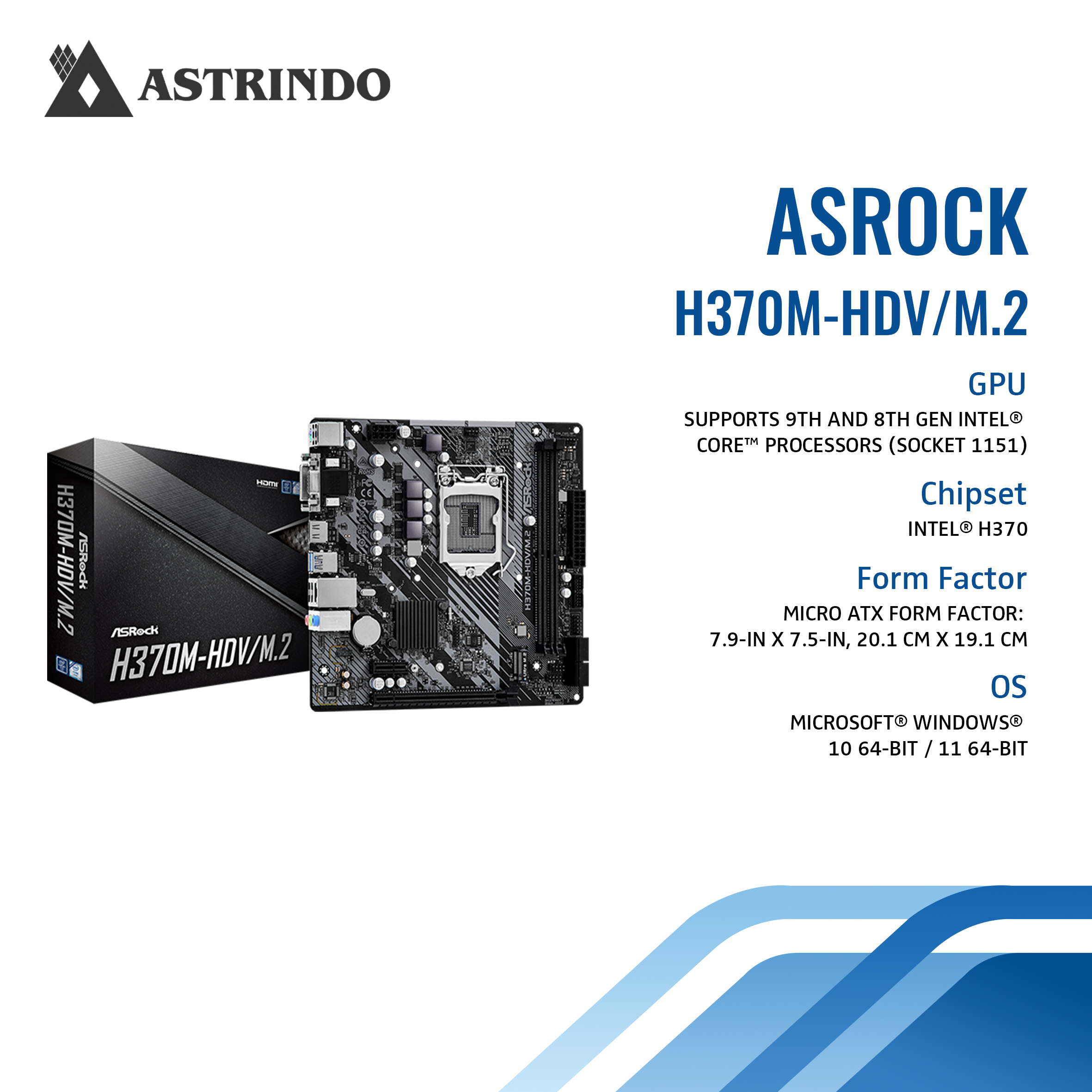

ASROCK ASRock H370M-HDV/M.2 (H370M-HDV/M.2)

Belum ada review (0 review)

Rp. 844.000

(*)Harga sudah termasuk PPN

Stok : Limited

Brand: ASROCK | SKU: H370M-HDV/M.2

Spesifikasi:

CPU:
- Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
- Supports CPU up to 95W
- Supports Intel® Turbo Boost 2.0 Technology

Chipset: Intel® H370

Memory:
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support

Graphics:
- 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz
- 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920x1200) 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN:
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Slots
CPU:
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE1)

Storage:
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB:
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

Rear Panel I/O:
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports
- 2 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories:
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Form Factor:
- Micro ATX Form Factor: 7.9-in x 7.5-in, 20.1 cm x 19.1 cm
- Solid Capacitor design

OS: Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
