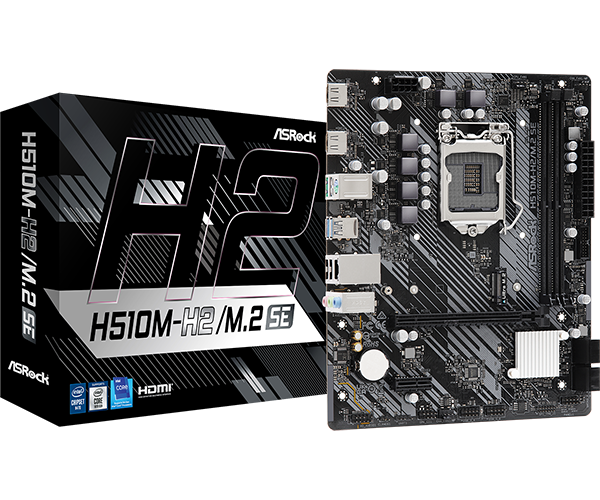

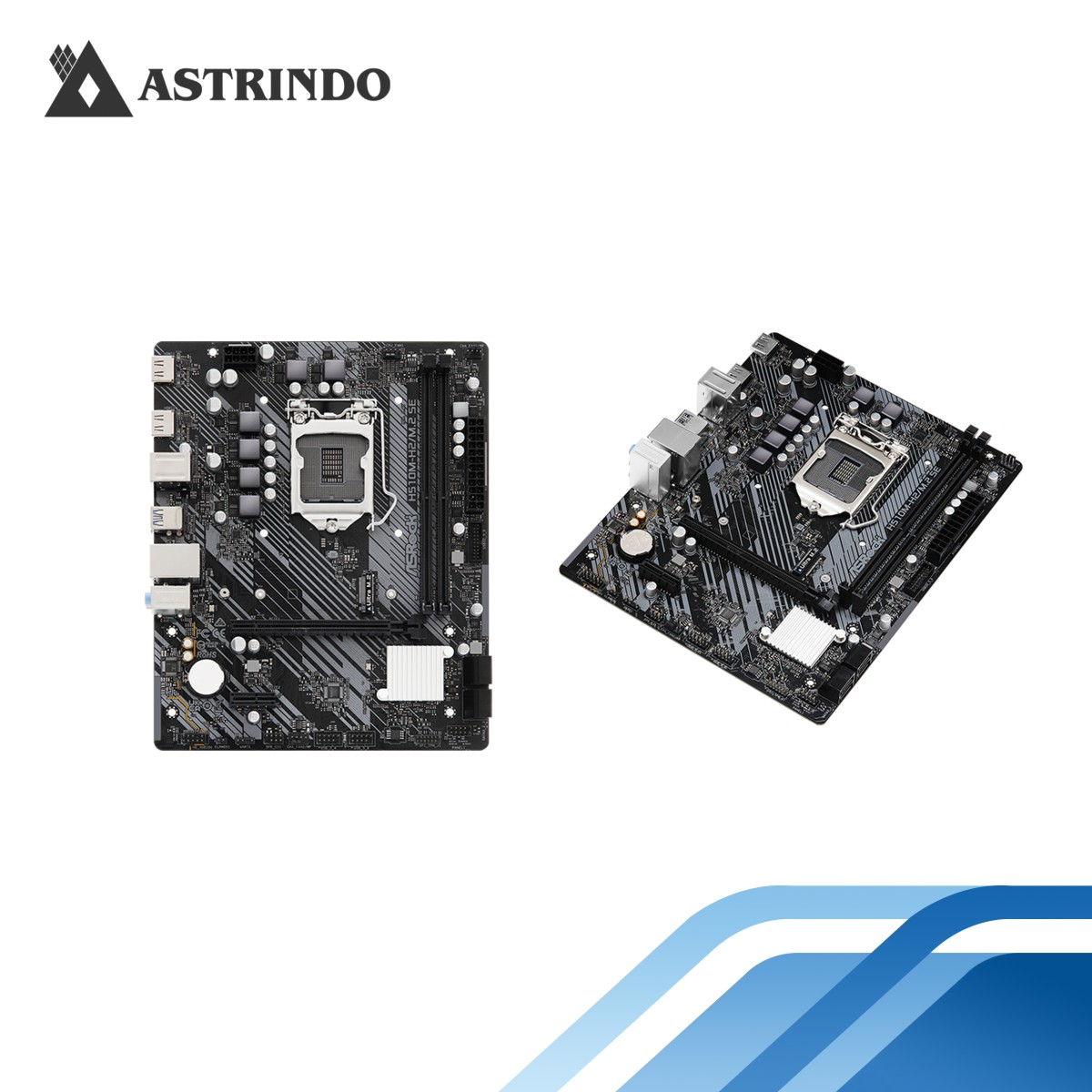

ASROCK ASRock H510M-H2/M.2 SE (H510M-H2/M.2 SE)

Stok : Limited

Brand: ASROCK | SKU: H510M-H2/M.2 SE

Spesifikasi:'

CPU:
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset: Intel® H470

Memory:
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

Graphics: - 2 x HDMI
Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN:
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Slots:
Intel® 11th Gen & 10th Gen Processors:
- 1 x PCIe 4.0 x16 Slot (PCIE1)*
Intel® H470 Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)**

Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB:
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

Rear Panel I/O:
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 2.0 Ports
- 4 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Accessories:
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Form Factor: Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm

OS:
- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
