ASUS ASUS Intel LGA4710-2 CEB workstation motherboard, 4 PCIe 5.0 x16 slots, multi-GPU support (PRO WS W890-SAGE)

Belum ada review (0 review)

Rp. 16.900.000

(*)Harga sudah termasuk PPN

Stok : Limited

Brand: ASUS | SKU: PRO WS W890-SAGE

Deskripsi:

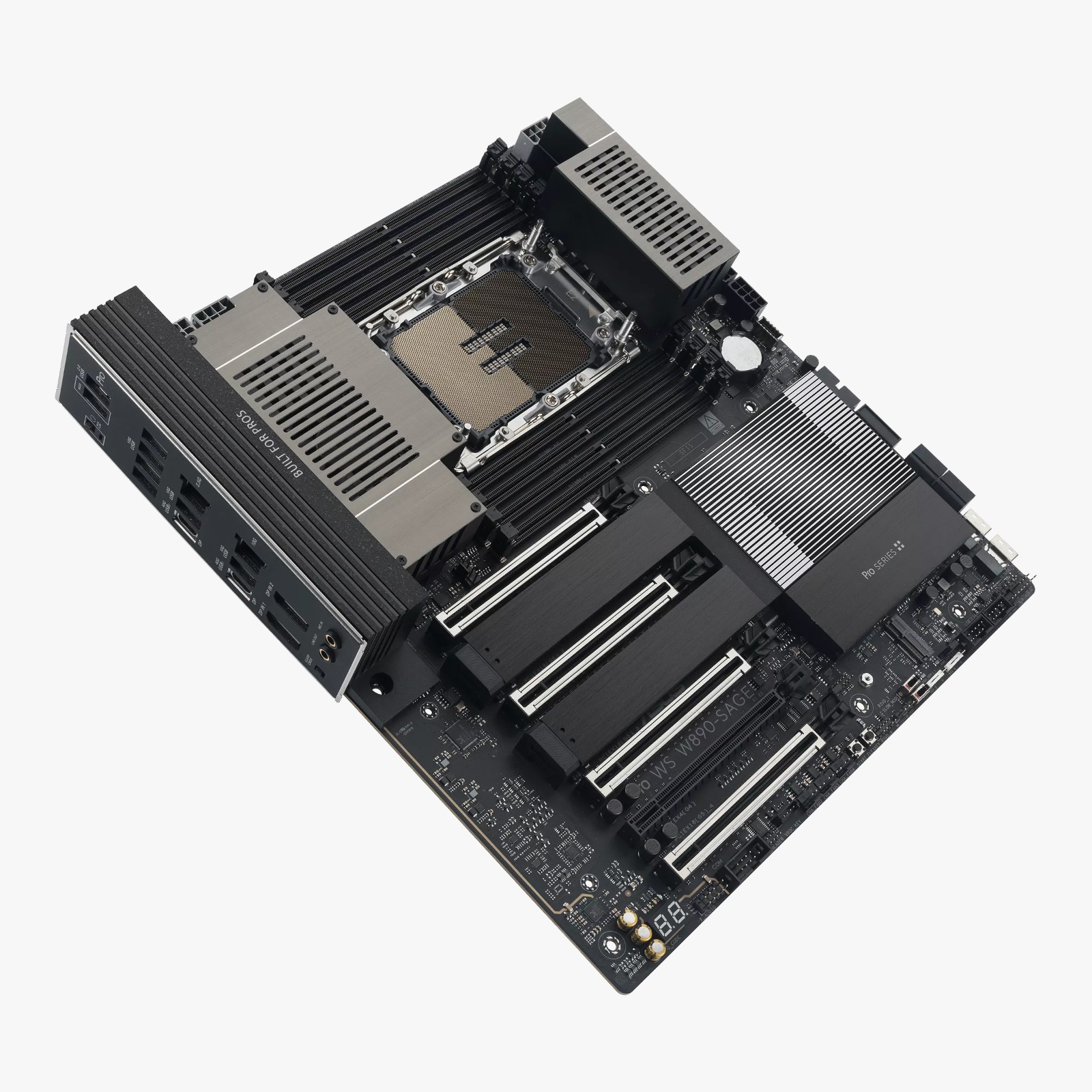

Intel LGA4710-2 CEB workstation motherboard, 4 PCIe 5.0 x16 slots, multi-GPU support, robust 12+2+2+1+2 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, 10 Gb & 2.5 Gb LAN, SlimSAS

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA4710-2 Socket Supports up to 86-Core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
Ultrafast Connectivity: Four PCIe® 5.0 x16 slots, 10Gb and 2.5Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
CPU and Memory Overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (2DPC).
Robust Power and Thermal Design: 12+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with an active fan, M.2 backplate and thermal pad.
Ready for Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion card, plus ASUS Control Center Express software for real-time monitoring and management
Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Description
Reviews (0)

Spesifikasi:

Model: Pro WS W890-SAGE

News & Updates: LGA4710-2

CPU:
Intel® Socket LGA4710-2 for Xeon® 600 Processors for Workstation
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset: Intel® W890 Chipset

Memory:
8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*
4-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module

Graphics: 2 x USB 40Gbps (USB4®) ports support USB Type-C® display outputs*

Expansion Slots:
Intel® Xeon® 690/670/650/630 Series Processors*
4 x PCIe 5.0 x16 slots (supports x16 mode)
Intel® W890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage:
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports
Intel® Xeon® 690/670/650/630 Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® W890 Chipset
SlimSAS_1 connector supports PCIe 4.0 x4 mode
SlimSAS_2 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an SFF-8654 adapter cable. The cable is
purchased separately.
4 x SATA 6Gb/s ports

Ethernet:
1 x Realtek 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.

USB:
Rear USB (Total 10 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A

Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

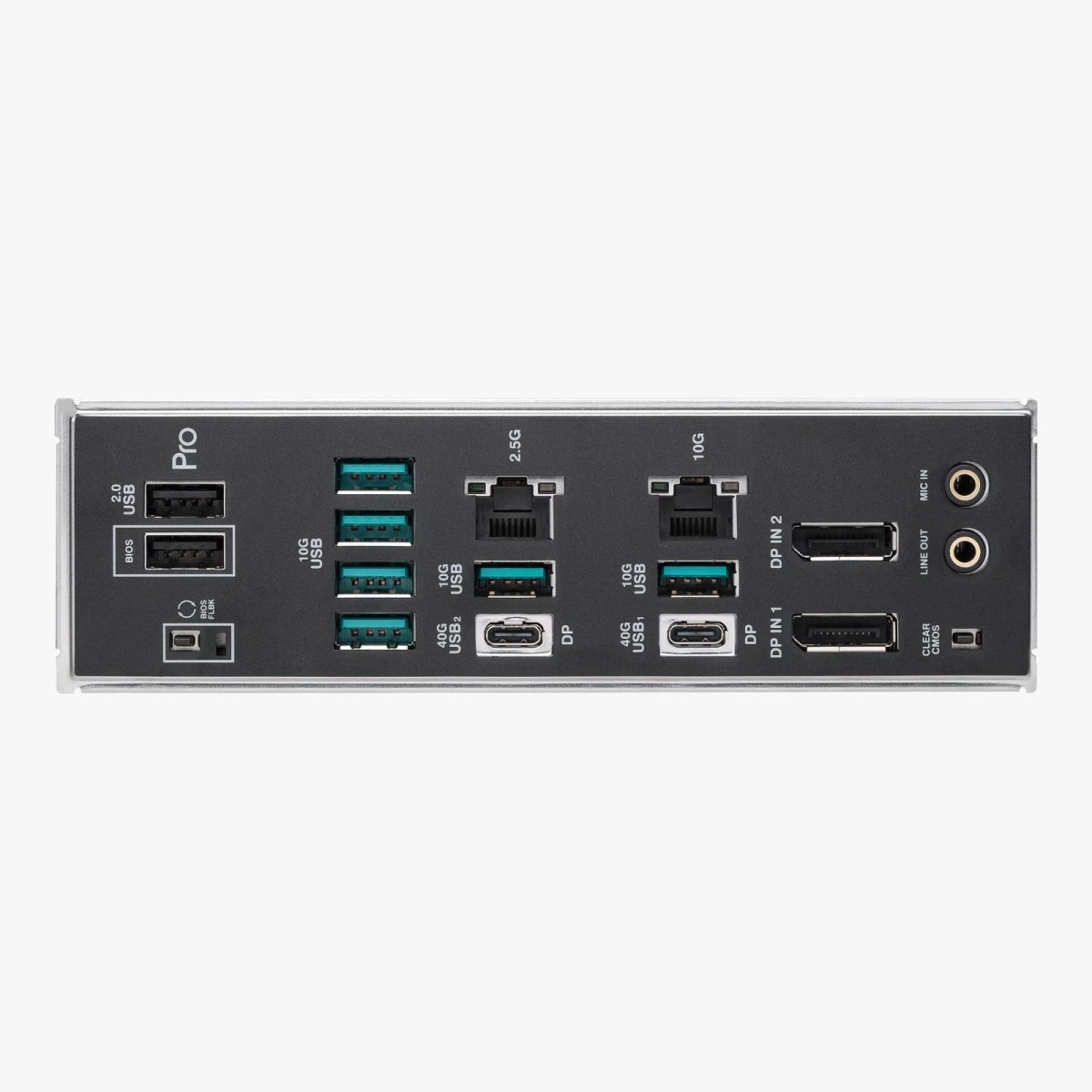

Back Panel I/O Ports:
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x Realtek 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
2 x DP IN ports

Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
ASUS DriverHub
- ASUS CPU-Z
Adobe Creative Cloud (Free Trial)**
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey

BIOS: 512 Mb Flash ROM, UEFI AMI BIOS(text-based)

Manageability: WOL by PME, PXE

Accessories:
Cables
2 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x DisplayPort cable
1 x 4-pin to 24-pin adapter cable for ATX power connector
Additional Cooling Kit
1 x detachable VRM/memory fan bracket kit
Miscellaneous
1 x Q-connector
2 x M.2 Q-Slide package
2 x M.2 backplate rubber packages
1 x Screw package for M.2 Key E
1 x E2A CPU carrier (for Intel® Xeon® 690 Series Processors)
1 x E2B CPU carrier (for Intel® Xeon® 670/650/630 Series Processors)
Documentation
1 x ACC Express activation key card
1 x Quick start guide
