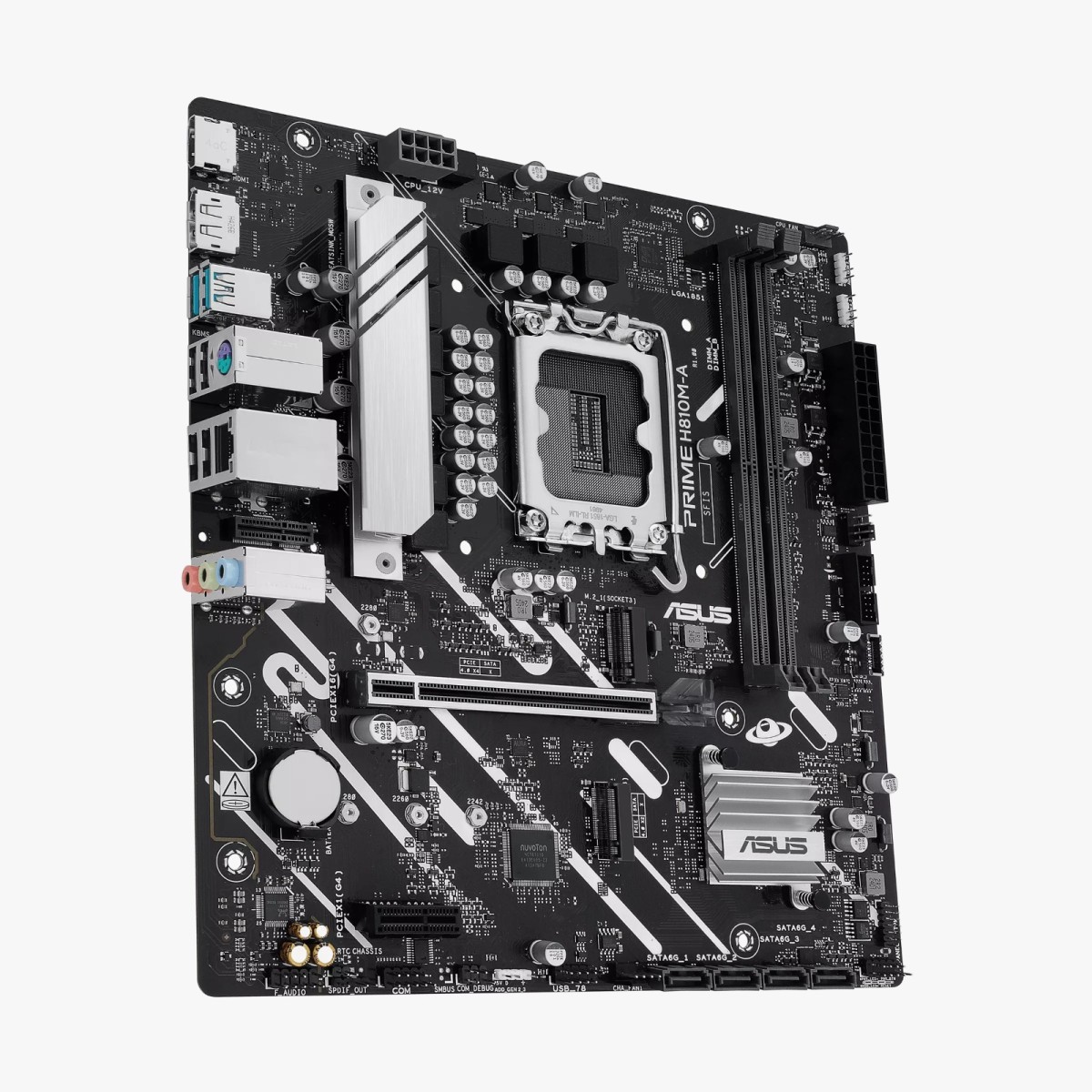

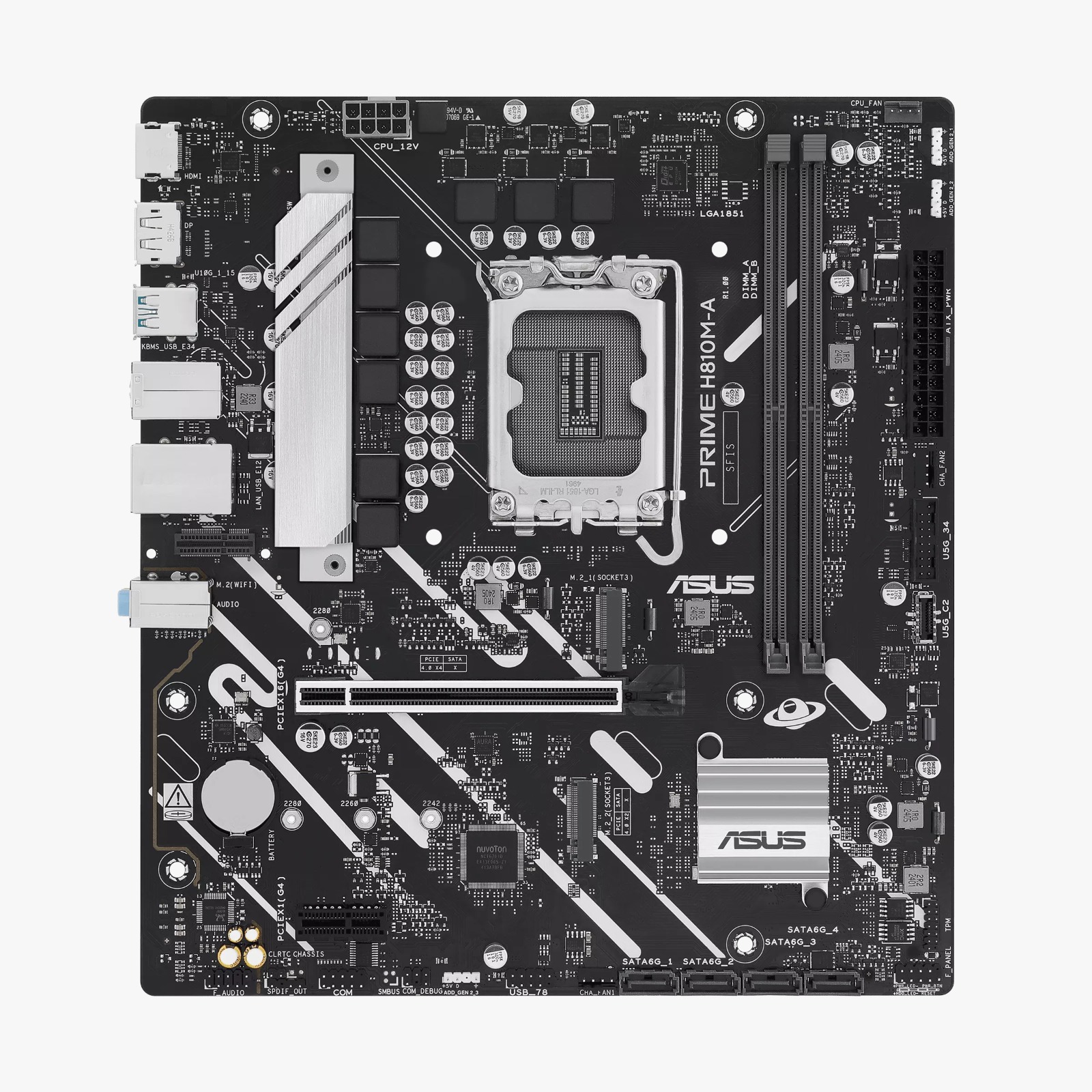

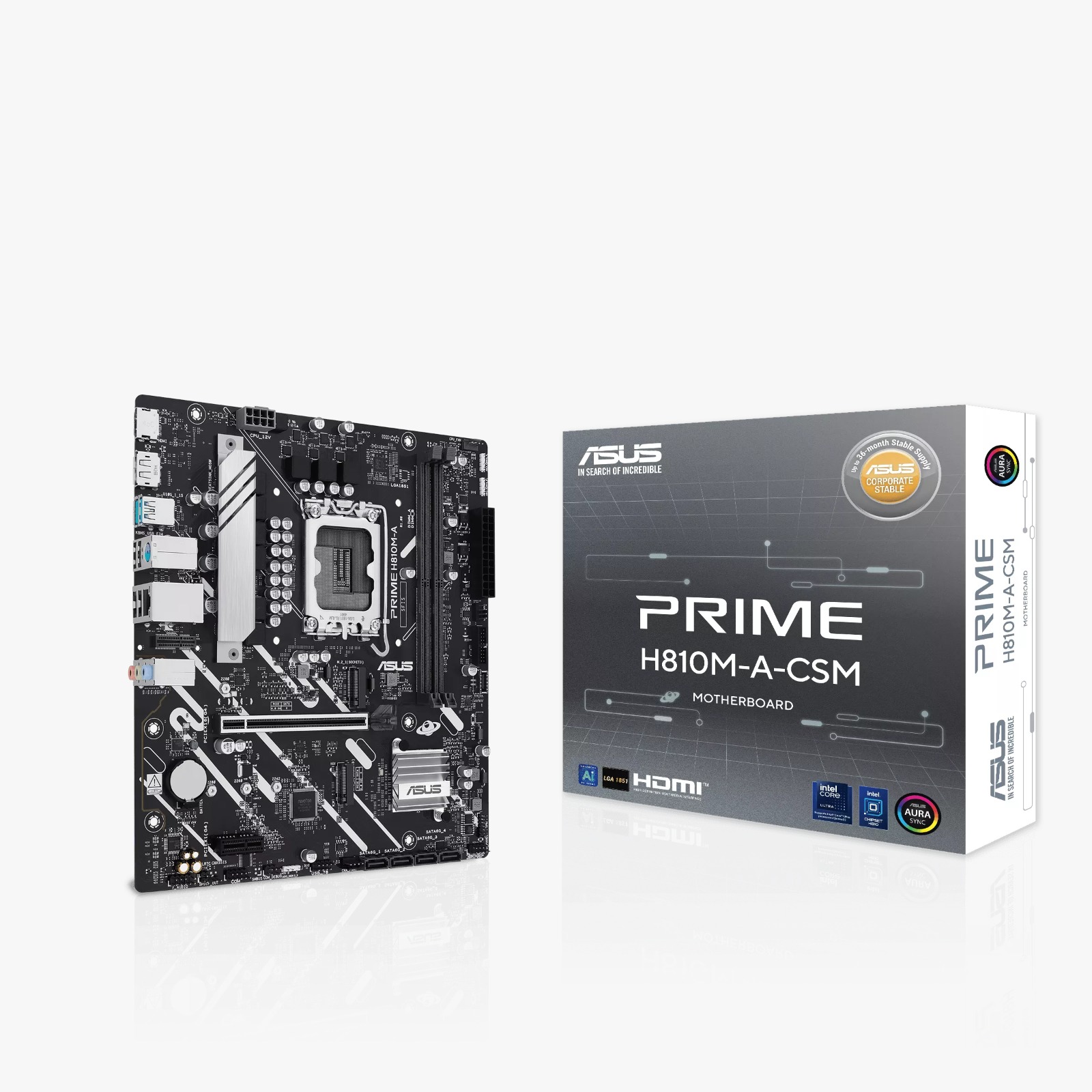

ASUS Asus Prime H810M ASUS Prime H810M-A-CSM Intel H810 LGA 1851 mATX Motherboard, 6+1+1+1 Discrete MOS, (PRIME H810M-A-CSM)

Stok : Limited

Brand: ASUS | SKU: PRIME H810M-A-CSM

Spesifikasi:

Model: PRIME H810M-A-CSM

CPU:
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset: Intel® H810 Chipset

Memory:
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)

Graphics:
1 x DisplayPort**
1 x HDMI™ port***

Expansion Slots:
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot

Storage:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet:
1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability: WOL by PME, PXE

Operating System: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor:
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
