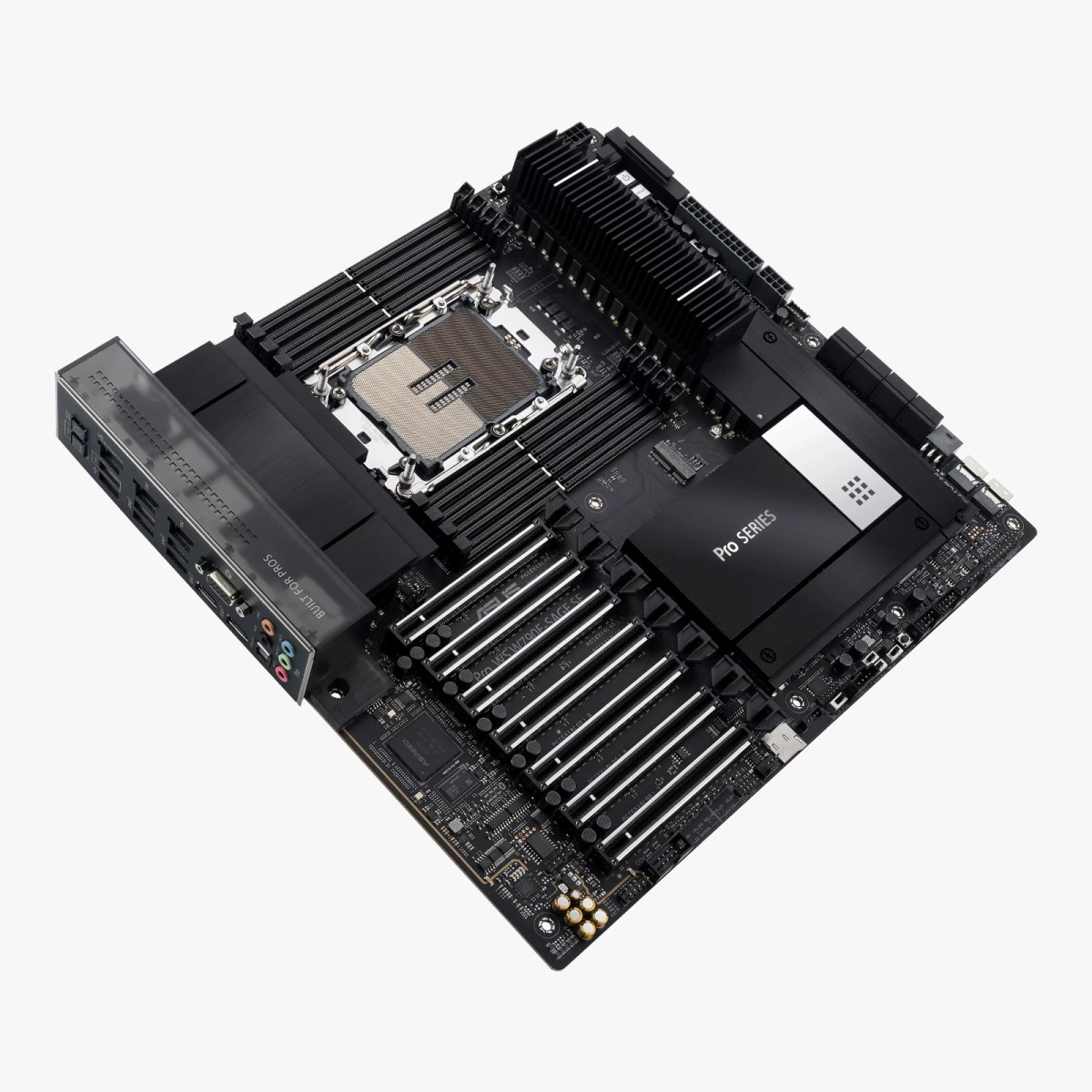

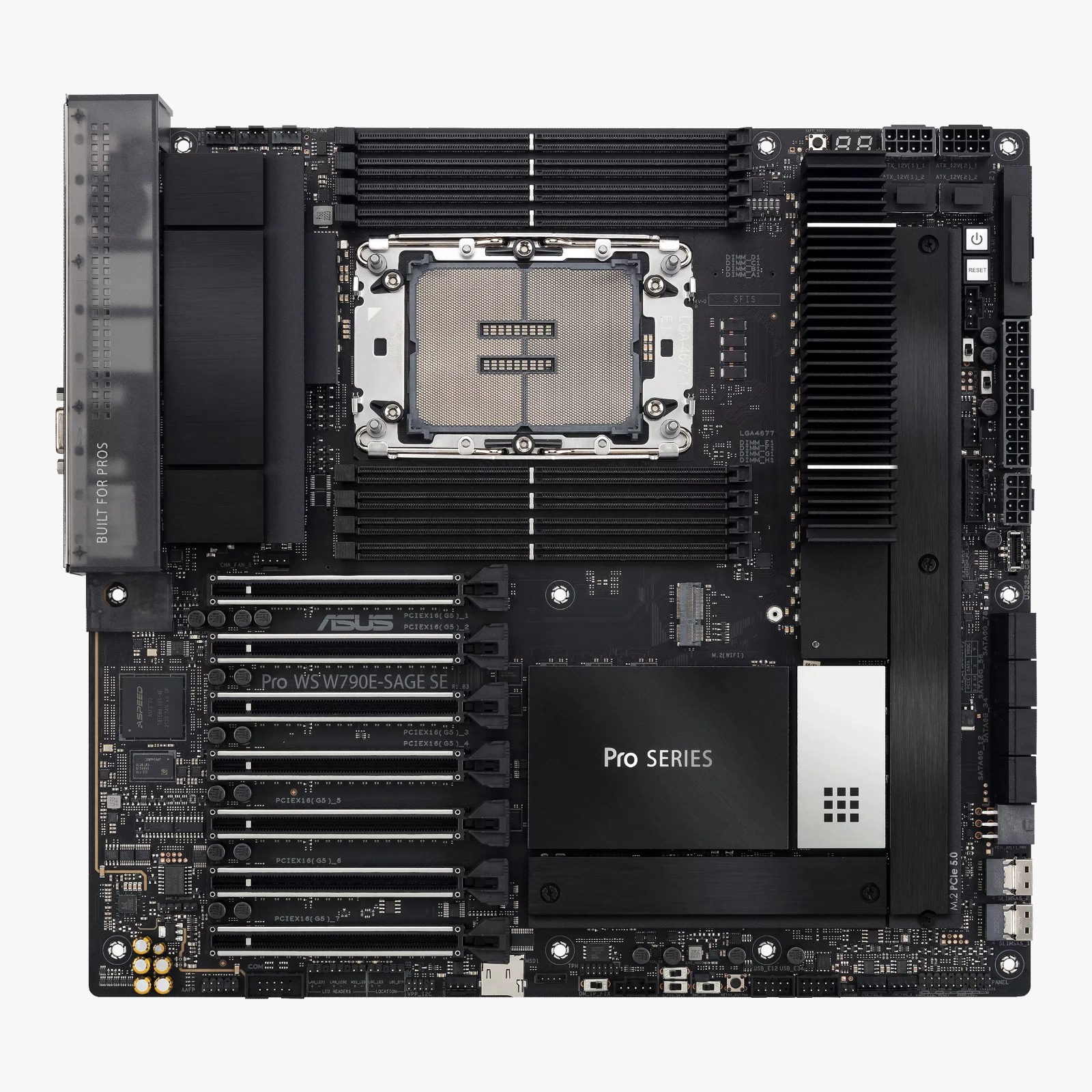

ASUS Asus Pro WS W790E-SAGE SE Intel® W790 (LGA 4677) EEB workstation motherboard, PCIe 5.0 x16, M.2, Dua (Pro WS W790E-SAGE SE)

Belum ada review (0 review)

Rp. 25.900.000

(*)Harga sudah termasuk PPN

Stok : Limited

Brand: ASUS | SKU: Pro WS W790E-SAGE SE

Intel® W790 (LGA 4677) EEB workstation motherboard, PCIe 5.0 x16, M.2, Dual 10G LAN, Server-grade Remote Management, 14+1+1 power stages, USB 3.2 Gen 2x2 Type-C®

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS
Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility

Description
Reviews (0)

Sesifikasi:

Model: Pro WS W790E-SAGE SE

CPU:
Intel® Socket LGA4677 for Xeon® W-3400 and W-2400 Series Processors*
Supports Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® W790 Chipset

Memory:
8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory*
8-Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphics: 1 x VGA port from AST2600

Expansion Slots:
Intel® Xeon® W-3400 Series Processors*
7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)**
Intel® Xeon® W-2400 Series Processors*
4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)**

Storage:
Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports*
Intel® Xeon® W-3400 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
Intel® W790 Chipet**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device
SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device
8 x SATA 6Gb/s ports

Ethernet:
1 x Intel® dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard

USB:
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Audio:
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
Surround Sound audio.

Back Panel I/O Ports:
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 port(s) (2 x Type-A)
1 x VGA port
2 x Intel® dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors:
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
5 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Power related
2 x 24-pin Main Power connector
4 x 8-pin +12V Power connector
1 x 8-pin PCIe Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
2 x SlimSAS connector(s)
8 x SATA 6Gb/s ports
1 x VROC Key connector
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x M.2 slot (Key E)
1 x ReTry button
1 x Safe Boot button
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
BMC Related
1 x BMC switch
1 x VGA switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
2 x Q_PSU switch
2 x PSU SMBus header
1 x Front panel location LED header
1 x Location button header
1 x VPP_I2C header
1 x Micro SD card socket
1 x BMC_T_SENSOR header
1 x BMC LED
1 x Location LED
1 x Message LED header

Accessories:
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x VRM Fan holder
1 x Q-connector
1 x M.2 Rubber Package(s)
1 x M.2 backplate Rubber Package(s)
1 x Screw package for M.2 Key E
1 x CPU guard for LGA 4677 E1A
1 x CPU guard for LGA 4677 E1B
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Operating System: Windows® 11, Windows® 10 64-bit

Form Factor: EEB Form Factor
12 inch x 13 inch (30.5 cm x 33 cm)
