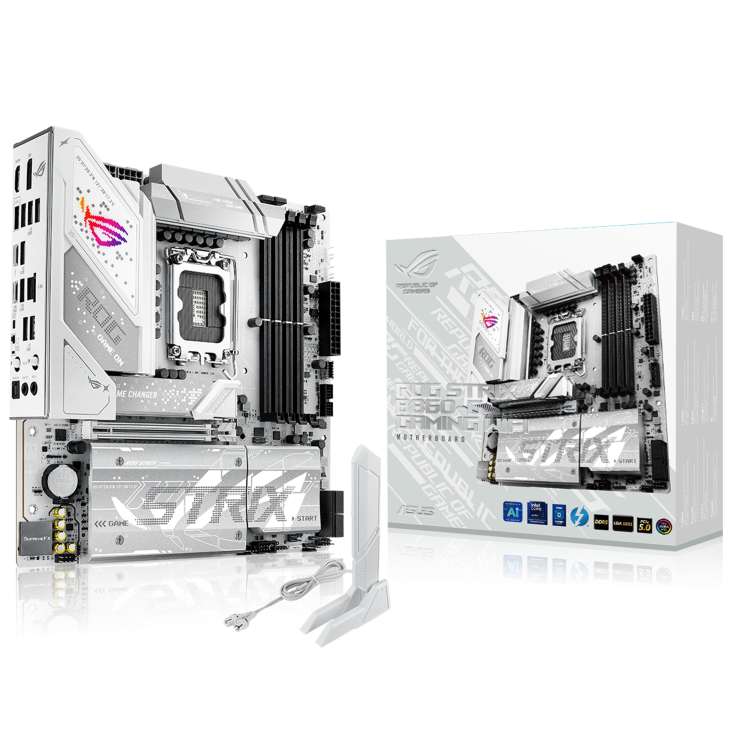

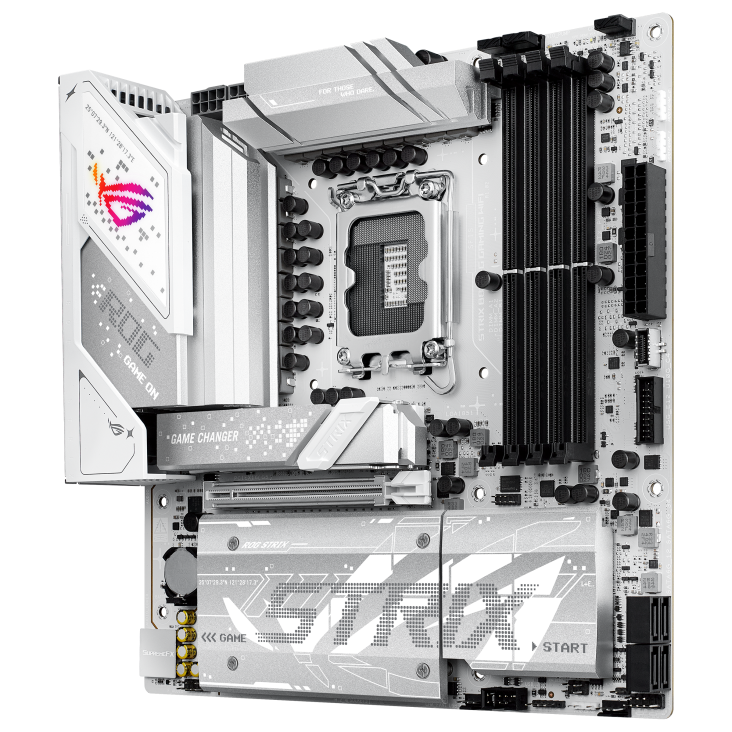

ASUS ASUS ROG Strix B860-G Gaming WiFi mATX Motherboard,Advanced AI PC-ready,DDR5,WiFi 7 (ROG STRIX B860-G GAMING WIFI)

Stok : Limited

Brand: ASUS | SKU: ROG STRIX B860-G GAMING WIFI

Spesifikasi:

Model: ROG STRIX B860-G GAMING WIFI

CPU:
Support Intel® Core™ Ultra Processors (Series 2)*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset: Intel® B860 Chipset

Memory:
4 x DIMM slots, max. 256GB, DDR5
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

Graphics:
1 x DisplayPort**
1 x HDMI™ port***
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs****

Expansion Slots:
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot

Storage:
Total supports 4 x M.2 slots and 4 x SATA
6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)

Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2230/2280 (supports
PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.

Ethernet: 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Manageability: WOL by PME, UEFI PXE

Operating System: Windows 11  (22H2 & later)

Form Factor:
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
