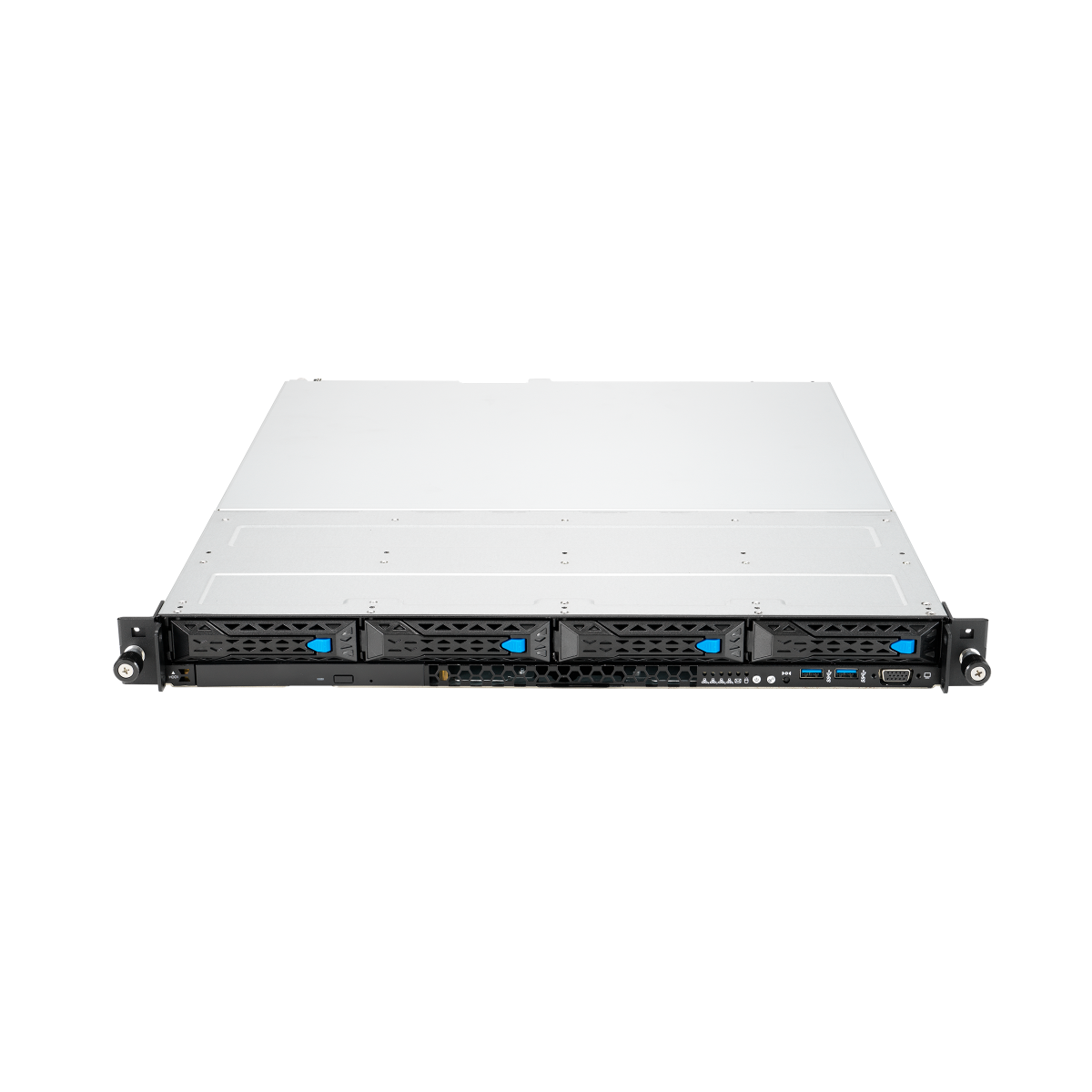

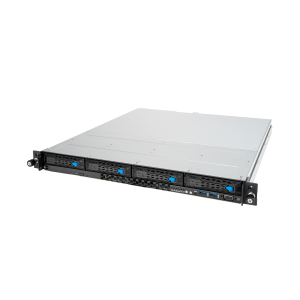

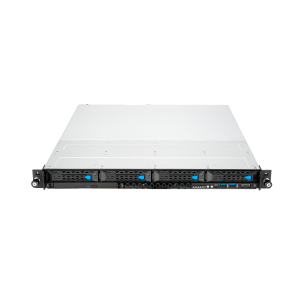

ASUS Asus RS300-E11-RS4 Intel® Xeon® E-2300, w/i heatsink, 4x DIMM, w/i 4x Hot-swap 3.5" HDD Trays (RS300-E11-RS4)

Stok : Limited

Brand: ASUS | SKU: RS300-E11-RS4

Spesification:

Processor / System Bus:
1 x Socket LGA1200
Intel® Xeon® processor E-2300 family
Intel® Pentium™ processors
*Refer to support page for more information

Generation: E11

Core Logic: Intel® C252 Chipset

Memory
Total Slots : 4 (2-channel)

Capacity : Maximum up to 128GB UDIMM

Memory Type : DDR4 3200/2933/2666 UDIMM

Memory Size : 32GB, 16GB, 8GB, 4GB UDIMM
* Refer to support page for more information

Expansion Slots:
Total PCI/PCI-X/PCI-E/PIKE Slots: 3
1 x PCI-E x 16 (Gen4 x16 Link, switch to x8 link when slot B occupied), FH/HL
1 x PCI-E x 8 (Gen4 x8 Link), HH/HL*
1 x PCI-E x 4 (Gen3 x4 Link), Proprietary R/A slot
(optional for Intel X710 10G LAN card)
* not available when supporting NVME SSD

Storage:
Storage Controller :
Intel® C252 Chipset
6 x SATA3 6Gb/s ports
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1/5/10 )

SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

HDD Bays:
4 x 3.5” Hot-Swap HDD Bays
-up to (2*SATA/SAS/NVMe + 2*SATA/SAS)
*SAS support only from optional SAS HBA/RAID card
*NVMe support only from optional NVMe upgrade kit

Auxiliary Storage FDD/CD/DVD:
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD-ROM

Networking: 2 x Intel® I210AT + 1 x Mgmt LAN

Graphic: Aspeed AST2600 with 64MB VRAM

Front I/O Ports:
1 x VGA port*
2 x USB 3.2 Gen1 ports
*Must support by ASMB10

Rear I/O Ports:
2 x USB 3.2 Gen 2 ports
1 x VGA port *
1 x HDMI port from CPU
1 x COM port
2 x RJ-45 ports
1 x RJ-45 ports (One for ASMB10-iKVM)(Optional)
*Must support by ASMB10

Switch/LED:
Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch

Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED

Management Solution:
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet

Regulatory Compliance: BSMI, CE, FCC(Class A)

Dimensions: 497mm x 439.5mm x 44mm

Form Factor: 1U

Weight: 15.2

Power Supply: 1+1 Redundant 450W 80 PLUS PLATINUM Power Supply

Environment:
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
