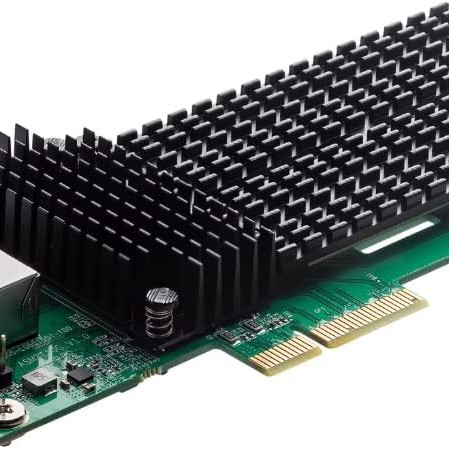

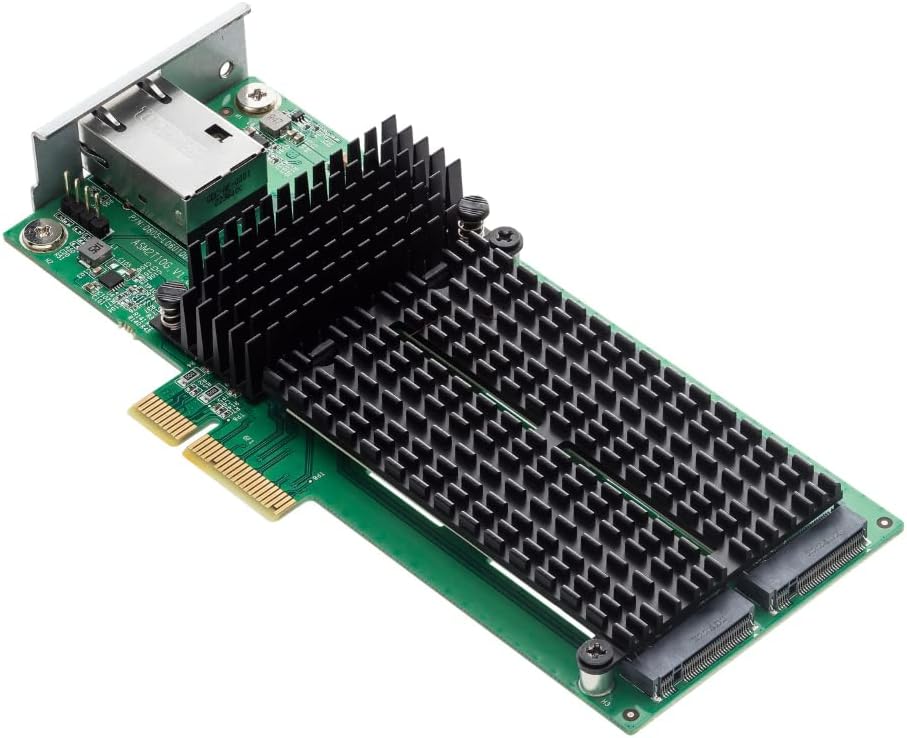

ASUSTOR Asustor AS-T10G3, 10GbE & M.2 NVMe SSD Network Card (AS-T10G3)

Hardware Specifications

• Specifications:
  • IEEE 802.3an. 10GBase-T Ethernet
  • IEEE 802.3ab 1GBASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3bz NBASE-T
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3x flow control
  • IEEE 802.1Q Tagged VLAN support
  • IEEE 802.1Qav Audio Video Bridging
  • IEEE 1588 v2 Precision Time Protocol (PTP, Precision Time Protocol)
• Maximum data transfer rate: 10 Gbps
• Network operation mode: full duplex
• Host bus interface: PCIe 3.0 x4
• Storage interface: NVMe
• Support size specification: 2280
• Interface type and quantity: M-key, 2 slots

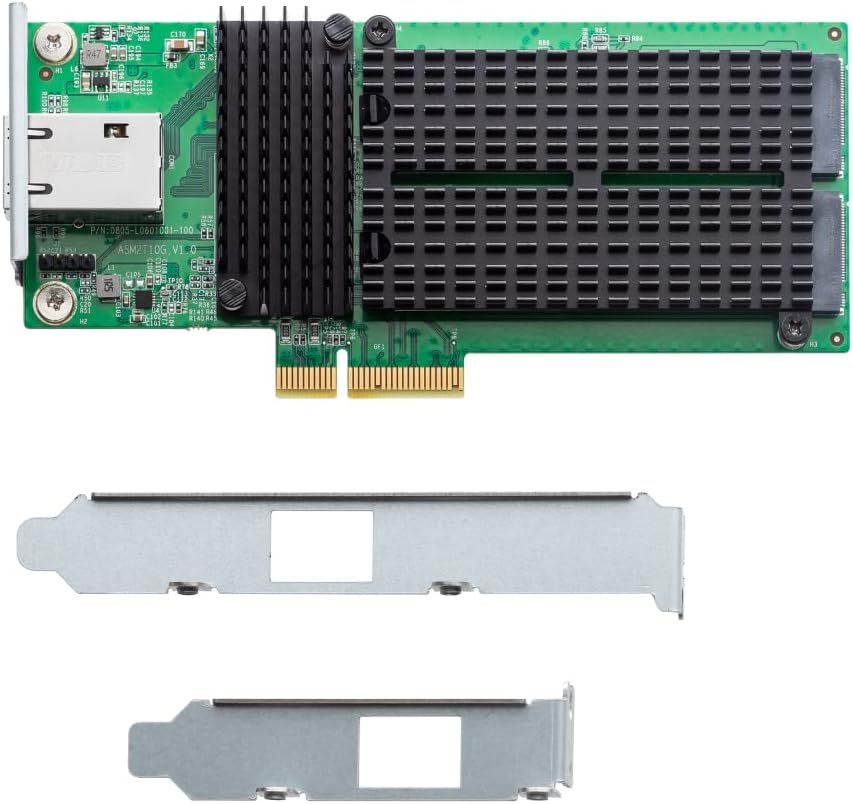

• Bracket support: Lockerstor-specific bracket preinstalled, full-height and half-height brackets included.
• Working temperature: 0 – 40°C
• Storage temperature: -20 – 60°C
• Relative Humidity: 5% to 95% RH
• Certifications: FCC, CE, UKCA, BSMI, VCCI, C-Tick, KCC
• Supported features:
  • Jumbo Frame 16K Bytes
  • IP, TCP, UDP checksum offload
  • Supports 10/100/1000/2500/5000/10000 auto-negotiation.
• Software requirements:
  • ADM 4.2 or above
• Hardware requirements: Lockerstor 4 & 6 Gen2, Lockerstor 4RD, RS & 12RD, Lockerstor 12RD Pro & 16RD Pro
• Product Warranty: 2 years
• *S3 sleep unsupported with installation of AS-T10G3

Size and Weight

• Size: 20.6 (H) x 153.1(W) x 68.9(D) mm
• Weight: 92.6 g
