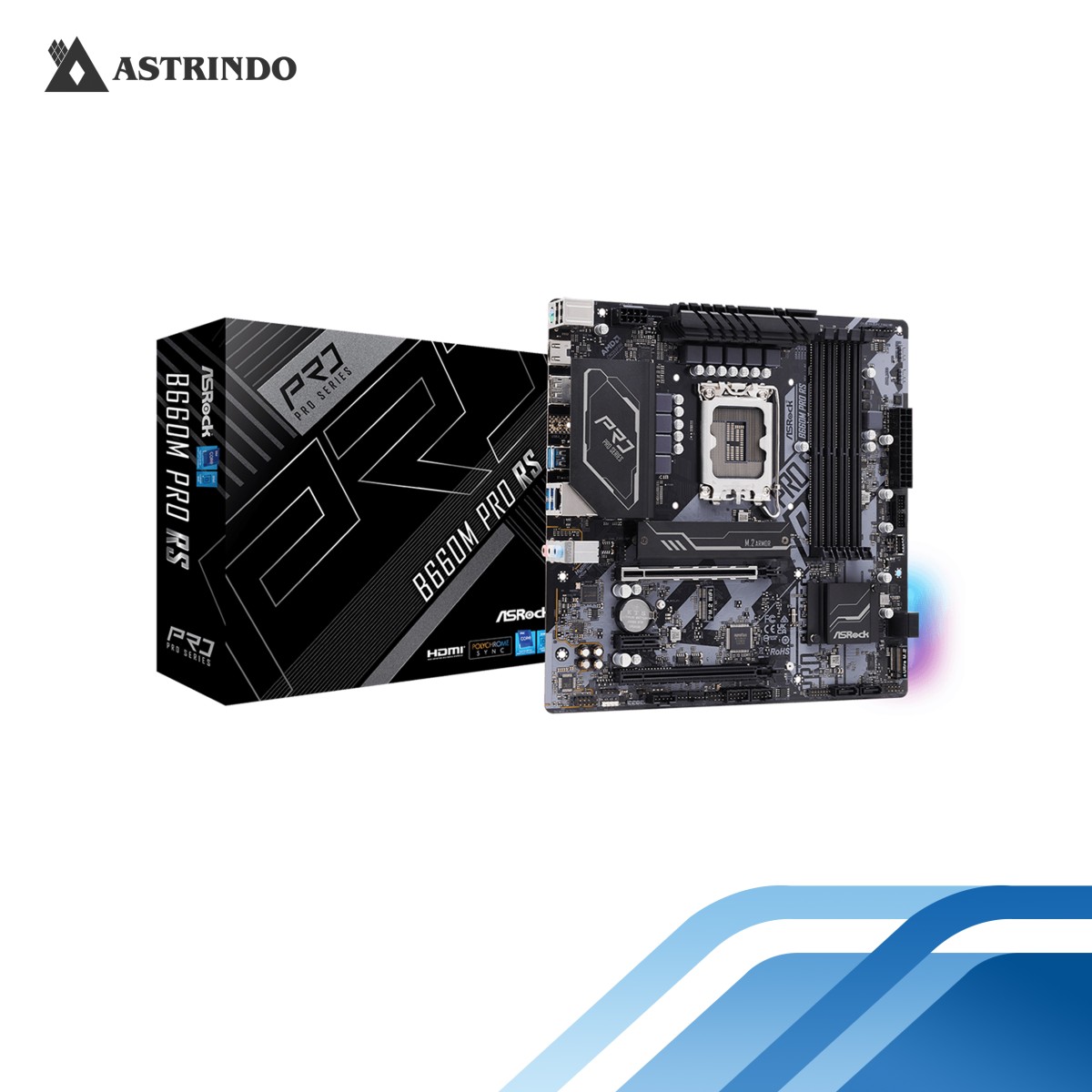

ASROCK B660M-PRO RS (B660M-PRO RS)
Rp. 2.040.000
(*)Harga sudah termasuk PPN
Stok : Limited
Brand: ASROCK | SKU: B660M-PRO RS
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 8 Phase Power Design
- Supports DDR4 4800MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 7 USB 3.2 Gen1 (4 Rear, 2 Front, 1 Front Type-C)
- 6 USB 2.0 (2 Rear, 4 Front)
- Intel® Gigabit LAN
- Garansi Resmi 3 Tahun.
| Brand | ASRock |
|---|---|
| Model | B660M PRO RS |
Supported CPU
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 12th Gen Intel Core Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipsets
| Chipset | Intel B660 |
|---|
Onboard Video
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Memory
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 up to 4800+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Supports NVMe SSD as boot disks. |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
Storage Devices
| SATA 6Gb/s | 4 x SATA 6Gb/s* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode* * Supports Intel Optane Technology (M2_2 only). * Supports Intel Volume Management Device (VMD). * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
Onboard Audio
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
Onboard LAN
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
Internal I/O Connectors
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header * Supports in total up to 12V/3A, 36W LED Strip. 3 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip. 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) |
Physical Spec
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
Windows Compatibility
| Windows 11 | Ready |
|---|
