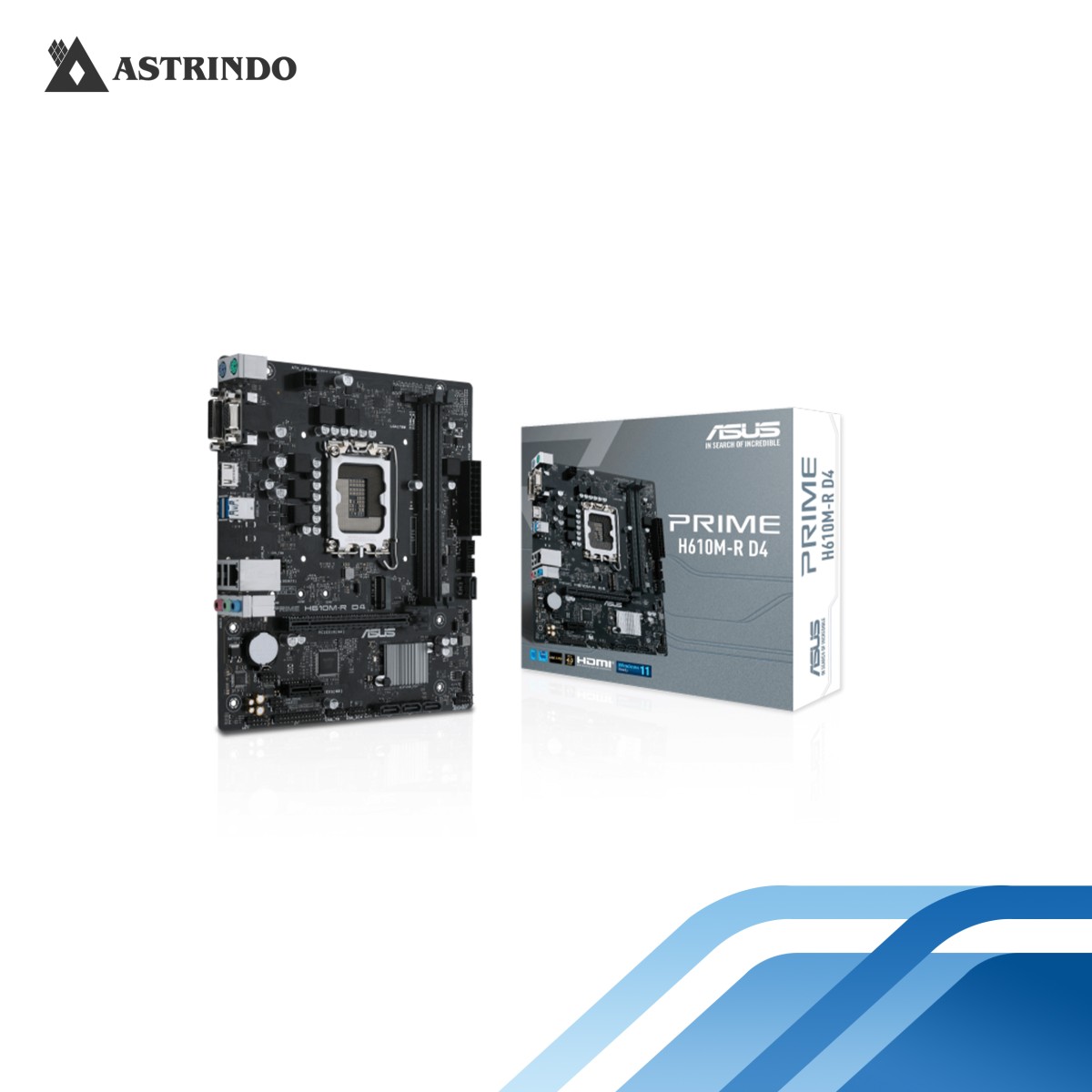

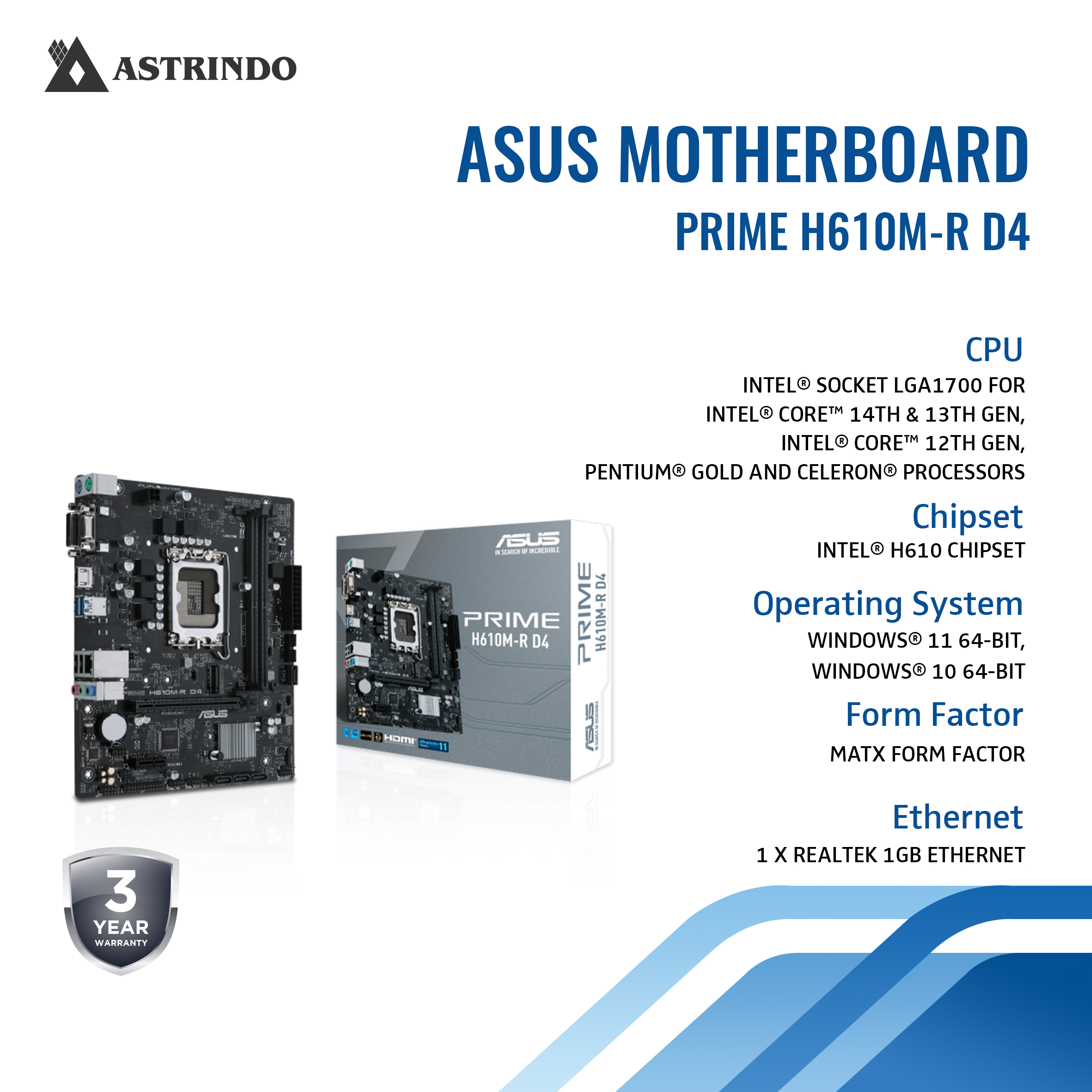

ASUS Motherboard Prime H610M-R D4 Intel H610 LGA 1700 micro-ATX DDR4 Support Gen 14 13 12 (PRIME H610M-R D4)

Stok : Limited

Brand: ASUS | SKU: PRIME H610M-R D4

• Model : PRIME H610M-R D4
• CPU : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Chipset : Intel® H610 Chipset
• Memory :
  2 x DIMM, Max. 64GB, DDR4
  3200/3000/2933/2800/2666/2400/2133 Non-ECC
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
• Graphics :
  1 x D-Sub
  1 x DVI-D
  1 x HDMITM port
• Expansion Slots :
  Intel® Core™ Processors (14th & 13th & 12th Gen)
  1 x PCIe 4.0 x16 slot
  Intel® H610 Chipset
  1 x PCIe 3.0 x1 slot
• Storage :
  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel® H610 Chipset
  M.2 slot (Key M), type 2242/2260/2280
  4 x SATA 6Gb/s ports
• Ethernet : 1 x Realtek 1Gb Ethernet
• Back Panel I/O Ports :
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x D-Sub port
  1 x DVI-D port
  1 x HDMITM port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard (purple) port
  1 x PS/2 Mouse (green) port
• BIOS : 128 Mb Flash ROM, UEFI AMI BIOS
• Operating System : Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor : mATX Form Factor
• Dimension : 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
• GARANSI RESMI 3 TAHUN
