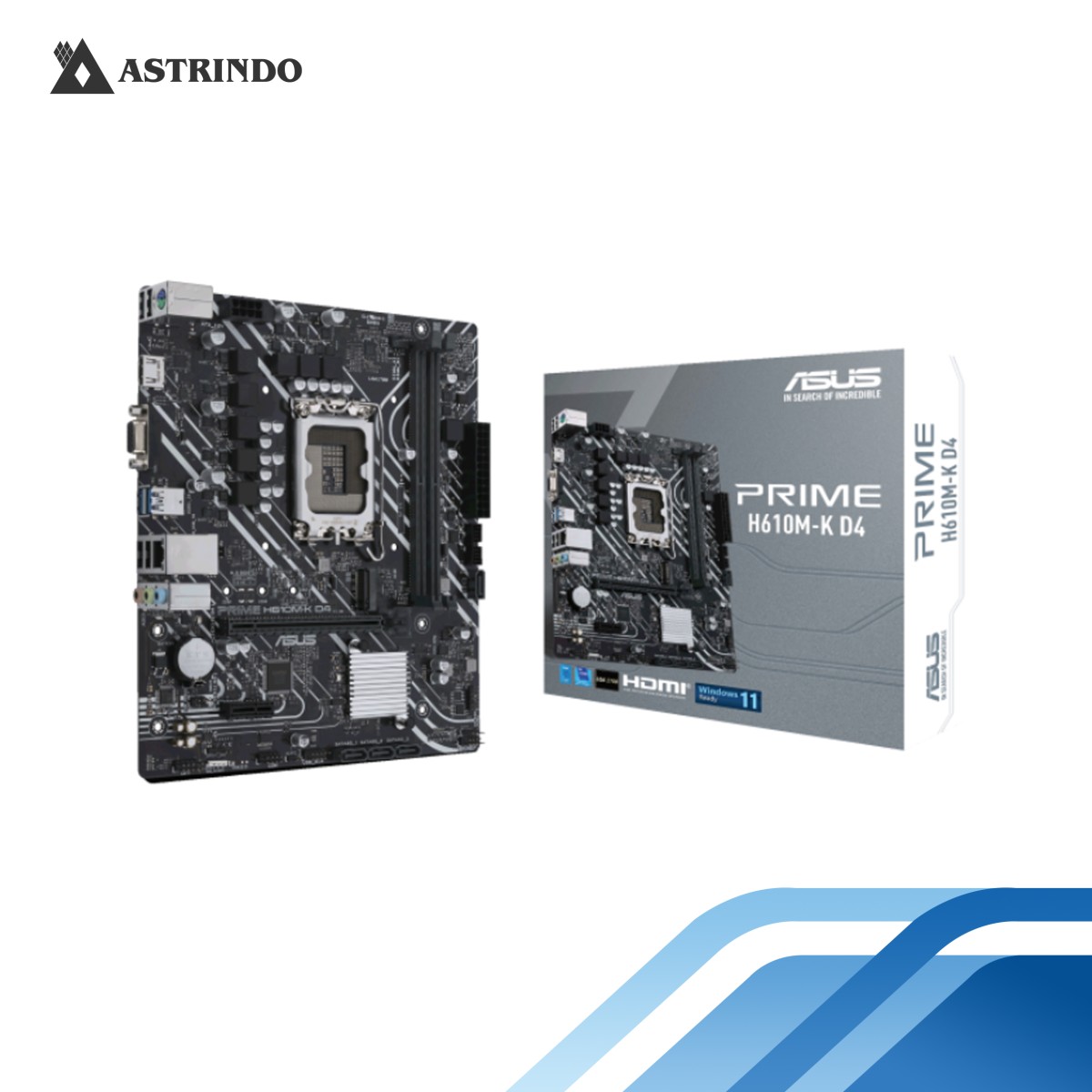

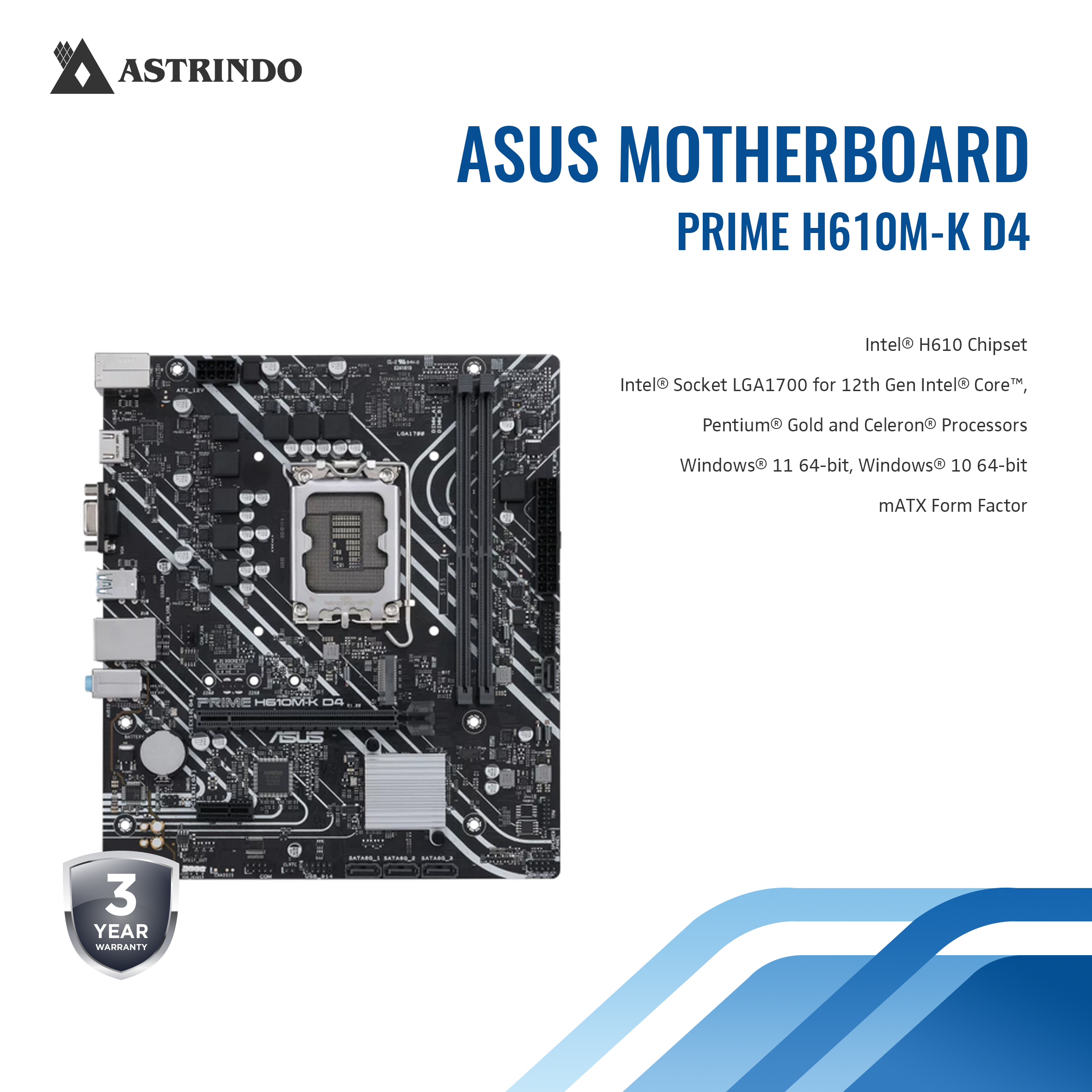

ASUS PRIME H610M-K D4 (PRIME H610M-K D4)
Rp. 1.191.000
(*)Harga sudah termasuk PPN
Stok : Limited
Brand: ASUS | SKU: PRIME H610M-K D4
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
- 5X Protection III: Multiple hardware safeguards for all-round protection
- CPU : Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Chipset : Intel® H610 Chipset
- Memory : 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
- Graphics : 1 x D-Sub port, 1 x HDMI® port
- Expansion Slots : Intel® 12th Gen Processors : 1 x PCIe 4.0 x16 slot, Intel® H610 Chipset : 1 x PCIe 3.0 x1 slot
- Storage : M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports
- Ethernet : 1 x Realtek 1Gb Ethernet
- USB : Rear USB (Total 6 ports) : 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 4 ports) : 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Audio : ALC887/897 Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports : 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x D-Sub port, 1 x HDMI® port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port
- Internal I/O Connectors : Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header - BIOS : 128 Mb Flash ROM, UEFI AMI BIOS
- Operating System : Windows® 11 64-bit, Windows® 10 64-bit
- Form Factor : mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
- Warranty : 3 Years
Related products

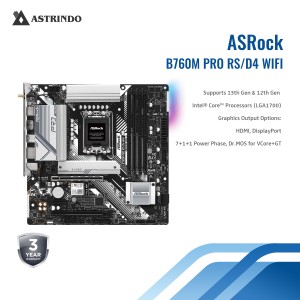

ASROCK B760 PRO RS/D4 - PRIME H610M-K D4
