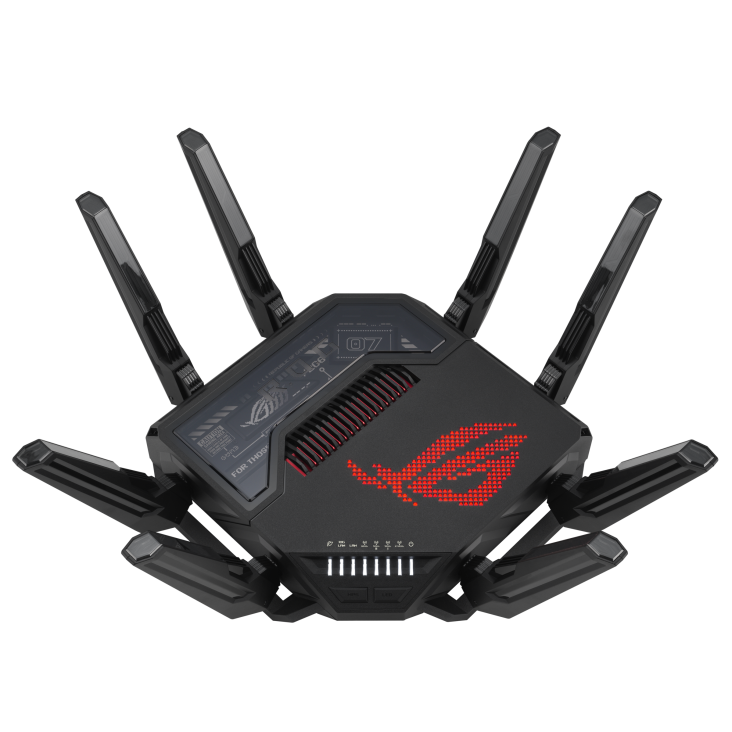

ASUS ASUS ROG Rapture GT-BE98 PRO First Quad-Band WiFi 7 Gaming Router supports 320MHz, Dual 10G Port, Tr (GT-BE98)

Stok : Limited

Brand: ASUS | SKU: GT-BE98

Spesifikasi :

Model Name : GT-BE98

Network Standard :

• WiFi 6 (802.11ax)
• WiFi 7 (802.11be)
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IPv4
• IPv6

Product Segment : BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps

WiFi Data Rate

• 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
• 5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Antenna : External antenna x 8

Transmit / Receive

• 2.4GHz 4x4
• 5GHz-1 4x4
• 5GHz-2 4x4
• 6GHz 4x4

Processor : 2.6GHz quad-core processor

Memory : 256 MB Flash and 2 GB RAM

Boosts Speed :

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
  4096-QAM high data rate
• 20/40/80/160/320 MHz bandwidth

Operating Frequency : 2.4 GHz / 5 GHz / 6 GHz

Operating Mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports :

• 1 x 10Gbps for WAN/LAN
• 1 x 2.5Gbps for WAN/LAN
• 1 x 10Gbps for LAN
• 3 x 2.5Gbps for LAN
• 1 x RJ45 10/100/1000Mbps for LAN
• 1 x USB 3.2 Gen1
• 1 x USB 2.0

Buttons : WPS Button, Reset Button, Power Switch, LED control Button

LED Indicator :

• WAN(Internet) x1
• 10G LAN x1
• 1G/2.5G LAN x1
• 6GHz x1
• 5GHz-1 x 1
• 5GHz-2 x 1
• 2.4GHz x1
• Power x1

Power Supply :

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19.5 V with max. 3.33 A current

Package Content n:

• GT-BE98 quad-band gaming router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

Product Weight (g) : 2000 g

Product Dimensions : 350.41 x 350.41 x 220.6 mm

AiMesh :

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Game :

• Game Boost / Acceleration
• WTFast
• ROG_First
• OpenNAT (Game Profile)
• Gaming Port

Parental Control :

• "Allow you to block access to unwanted websites and apps."
• Parental Control Customized Internet Schedule
• • Maximum Parental Control profile : 64
• • Maximum Parental Control content filter rule : 64

Guest Network :

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
• Guest Network Connection time limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Security :

WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE

• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• • Maximum Firewall Keyword Filter : 64
• • Maximum Firewall Network Service Filter : 32
• • Maximum Firewall URL Filter : 64

AiProtection :

• AiProtection Pro
• • Router Security Assessment
• • Malicious Site Blocking
• • Two-Way IPS
• • Infected Device Prevention and Blocking

VPN :

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS
• • Bandwidth Monitor
• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• Traffic Monitor
• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• Traffic Analyzer
• • Traffic Analysis Period : Daily, Weekly, Monthly
• • Website History

WAN :

• Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
• Dual WAN
• 3G / 4G LTE Dongle
• 4G / 5G Auto Mobile Tethering
• Port Forwarding
• • Maximum Port Forwarding Rule : 64
• Port Triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN :

• DHCP Server
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• • Maximum Manually Assign IP Address Rule : 128
• Wake on LAN (WOL)

Wireless :

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB application :

• 4G / 5G Auto Mobile Tethering
• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface : Operating system : ASUSWRT

Administration :

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
